Home > Products > Cage > Layer

Cage assembly : Easy to assembling as most of parts produced from automated production line.
Materials of all for cage are galvanized mill sheets and wires to prevent corrosion. Apply flexible wire grid as cage floor which is tilted 7˚ that gives no damage for chicken's legs as well as secures eggs rolling down smoothly.
Sliding cage door : Just tapping plastic clip with one hand to open door easily. Secure wide space makes easy to handle, put in/out of chickens. Also, with horizontal opening door gives chickens more free space to the right side and left when they get feeding.
Catwalk : Necessary from 6tiers up ( to 12tiers) and it gives easy access to the upper parts. Processed embossing finish iron sheet with holes enhances air circulation inside of house as well as safety.

케이지 기술사양

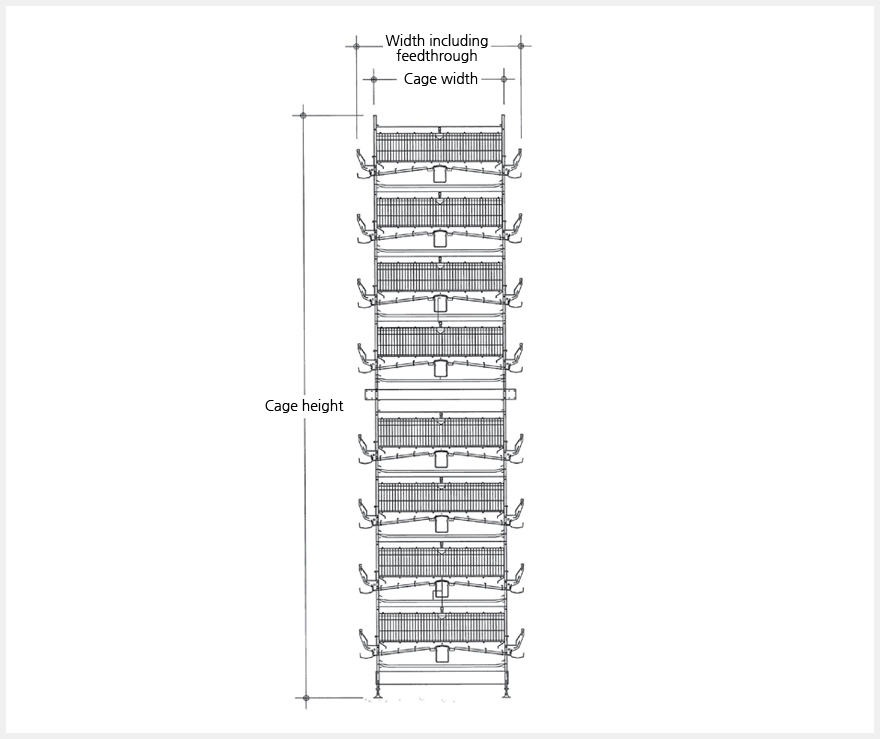

Cage tier(m)	3tiers	4tiers	5tiers	6tiers(catwalk)	7tiers(catwalk)	8tiers(catwalk)
Length	2.4	2.4	2.4	2.4	2.4	2.4
Width/Width including feedthrough	1.2 / 1.52	1.2 / 1.52	1.2 / 1.52	1.2 / 1.52	1.2 / 1.52	1.2 / 1.52
Height	2.095	2.695	3.325	4.104	4.704	5.304
Capa. per section	192 / 8	256 / 8	320 / 8	384 / 8	440 / 8	512 / 8

케이지 기술사양3
Floor tilted	Floor grid size	Egg belt width	Nipple per section	Feed chain speed	Manure belt speed
7˚	2.3Φ X 2Φ	10cm	2	7.8m/min	4.3~4.5m/min
