Pullet

Home > Products > Cage > Pullet

Materials and assembling is same easy as layer cage.
Drinking and feeding line can be adjusted by following chicks growing per each tier, with optimized nipple and dripping cup for pullet cage.
Sliding cage door : Just tapping plastic clip with one hand to open door easily. Secure wide space makes easy to handle chickens. Also, with horizontal opening door gives chickens more free space to the right side and left when they get feeding.
Manure belt : mounted rollers to keep tension stable of belt save maintenance cost and labor.

케이지 기술사양

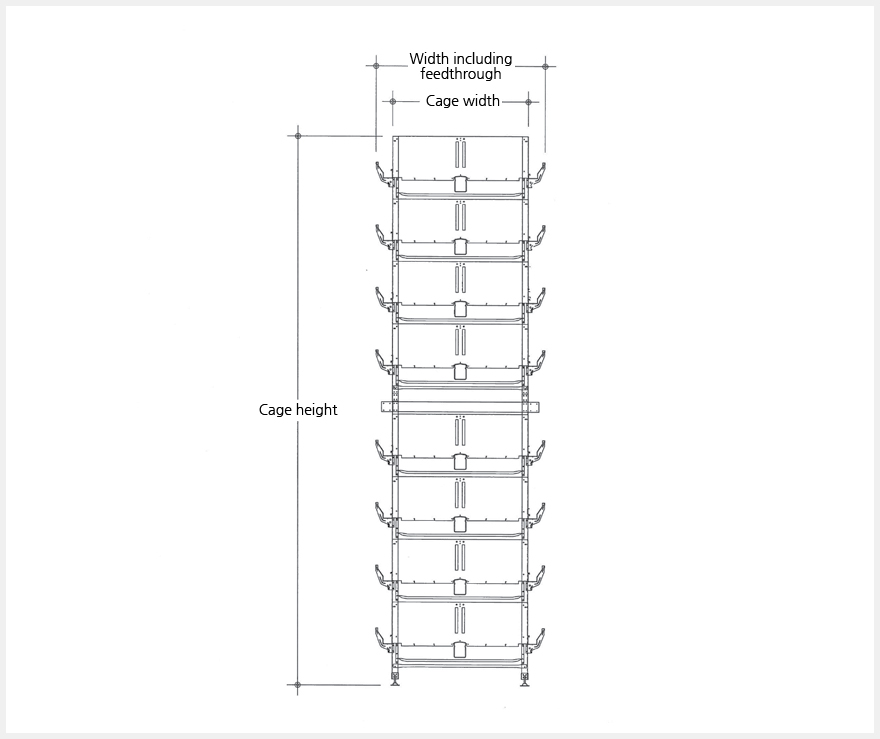

Cage tier(m)		3tiers	4tiers	5tiers	6tiers(catwalk)	7tiers(catwalk)	8tiers(catwalk)
Length		2.0	2.0	2.0	2.0	2.0	2.0
Width/Width including feedthrough		1.3 / 1.62	1.3 / 1.62	1.3 / 1.62	1.3 / 1.62	1.3 / 1.62	1.3 / 1.62
Height	without airduct	1.820	2.380	2.940	3.804	4.364	4.924
Height	with airduct	1.936	2.536	3.136	4.000	4.600	5.200
Capa. per section		240 / 20	320 / 20	400 / 20	480 / 20	560 / 20	640 / 20

케이지 기술사양3
Floor grid size	Nipple per section	Feed chain speed	Manure belt speed
2.0 Φ X 2.0 Φ	2	7.8m/min	4.3~4.5m/min
